WWT FlexShoe with JetGuide Helps 4-1/2in Liner Run Through Window in Oman

Operator Identifies WWT FlexShoe as a Possible Solution to Help Liner Run Through a Sidetrack Window in Oman

Well Basics:

 • Window milled through 7in casing at 3050m MD.

 • Directional well with approx. 15deg inclination and 12deg/100ft dog-leg at the sidetrack point.

• 5-7/8in OH to 3450m MD

WWT FlexShoe Guides Liner to Bottom

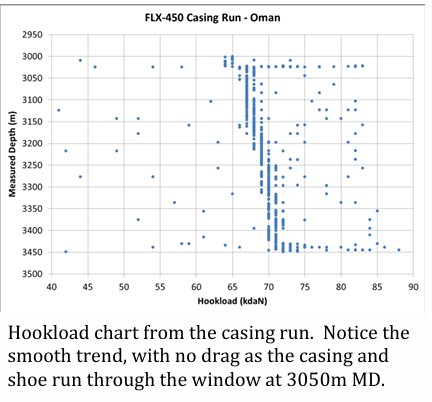

The WWT FlexShoe, model FLX-450, was picked up and run in the hole without difficulty. The 4-1/2in casing was run through the window without any noticeable drag, and run through the window. The casing was also run to TD without any drag or tight spots, as seen on the hookload chart below. There were no issues circulating mud, LCM, or cement through the FlexShoe.

 The company man reported that the FlexShoe worked as expected, and that the liner got to bottom without issue.
