Torque & Drag: How WWT Non‑Rotating Protectors Deliver Maximum Drilling Efficiency
From extended‑reach laterals to complex directional wells and deepwater applications, controlling torque and drag is essential. Excessive friction between the drill string and wellbore not only reduces energy delivered to the bit but also increases wear on casing and drill pipe and can limit total achievable depth. That’s where WWT International’s Non‑Rotating Protectors (NRPs) stand out, offering a fluid‑bearing‑based rotational friction reduction and axial friction proven across a wide range of well types.
Unlike other solutions that are steel or high-friction rubber, WWT’s NRPs are a highly engineered mechanical torque and drag reduction tool with an integrated low‑friction outer diameter and patented fluid‑bearing design. This approach not only isolates tool joints to prevent metal‑to‑metal contact but also dramatically lowers both torque and drag, improving energy transfer to the bit and protecting downhole assets.
Key benefits include:
- · Reduced torque and drag, improving drilling efficiency and lowering mechanical specific energy
- · Enhanced casing, riser, and drill string protection

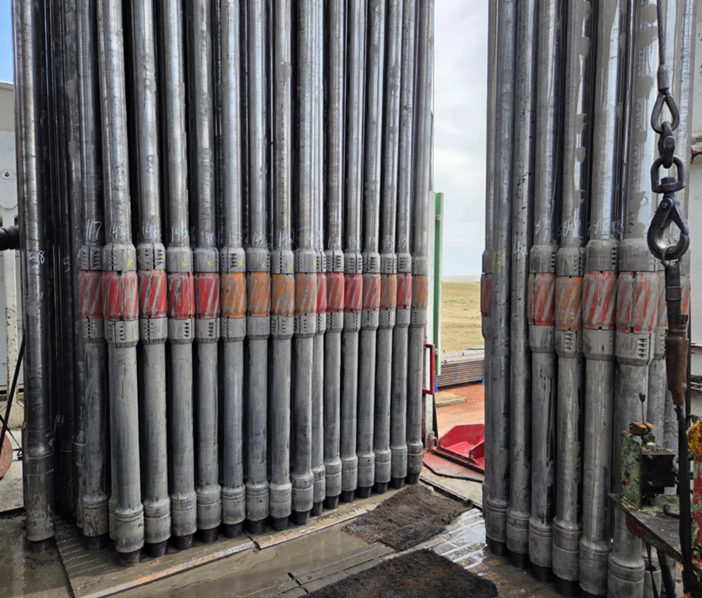

- · Fast, field‑proven installation with minimal impact on rig operations
- · Flexible placement with negligible weight or height addition to the drill string
Case Study Highlights: Real World Torque & Drag Solutions
Cutting Torque by Over 30% in North Sea ERD and Directional Wells

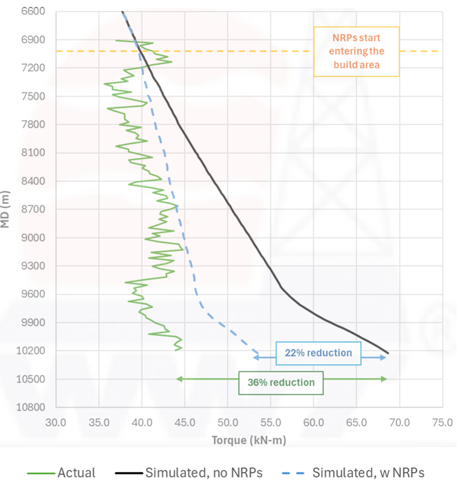

One of the most powerful demonstrations of NRP performance comes from multiple North Sea offshore wells. In both extended‑reach and directional operations, NRPs consistently delivered 32–36% torque reduction at total depth, enabling smoother drilling and lowering the risk of drill string torsional limits being exceeded.
This level of torque reduction not only improved drilling efficiency but also contributed to lowering mechanical specific energy, making it easier to maintain weight on bit and good rate of penetration (ROP).
Record‑Breaking Laterals in the USA

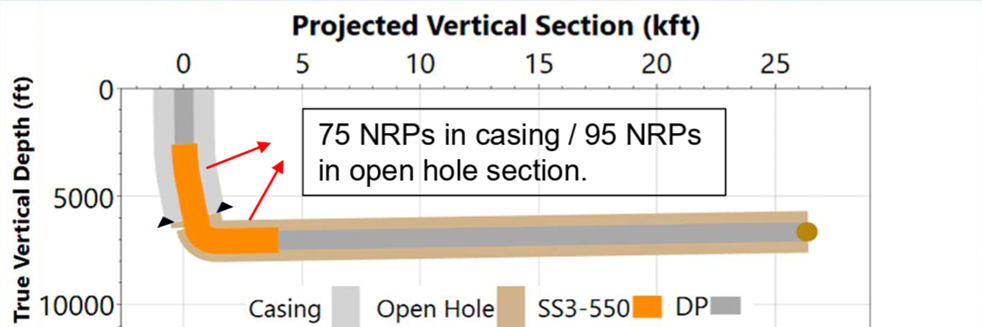

A North American operator deploying NRPs in some of the Lower 48’s longest laterals reported 12–16% torque reductions, even in harsh downhole conditions. These gains translated into measurable drilling performance benefits and demonstrated how friction management tools can extend achievable lateral length without prohibitive torque penalties.

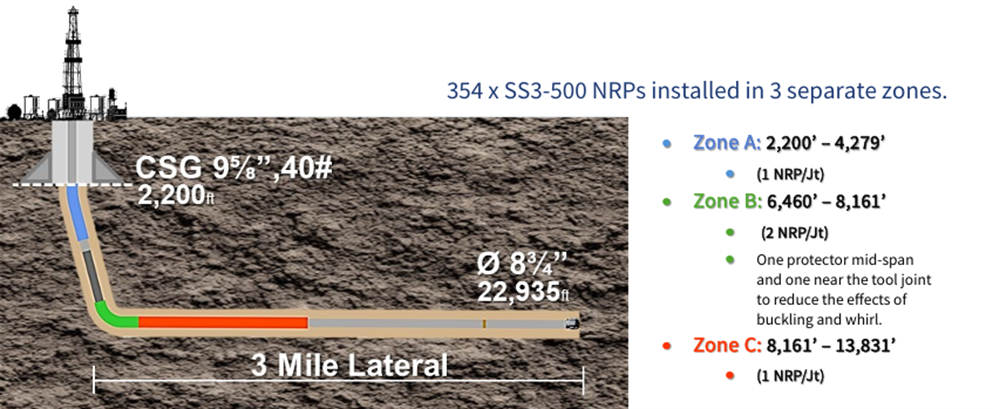

Another Powder River Basin case highlighted how NRPs cut torque significantly in a 3‑mile lateral drilled through abrasive formations, enabling the well to reach total depth efficiently while also protecting drill pipe and significantly reducing mud lubricants costs.
Dramatic Torque Cutting in Challenging Sections

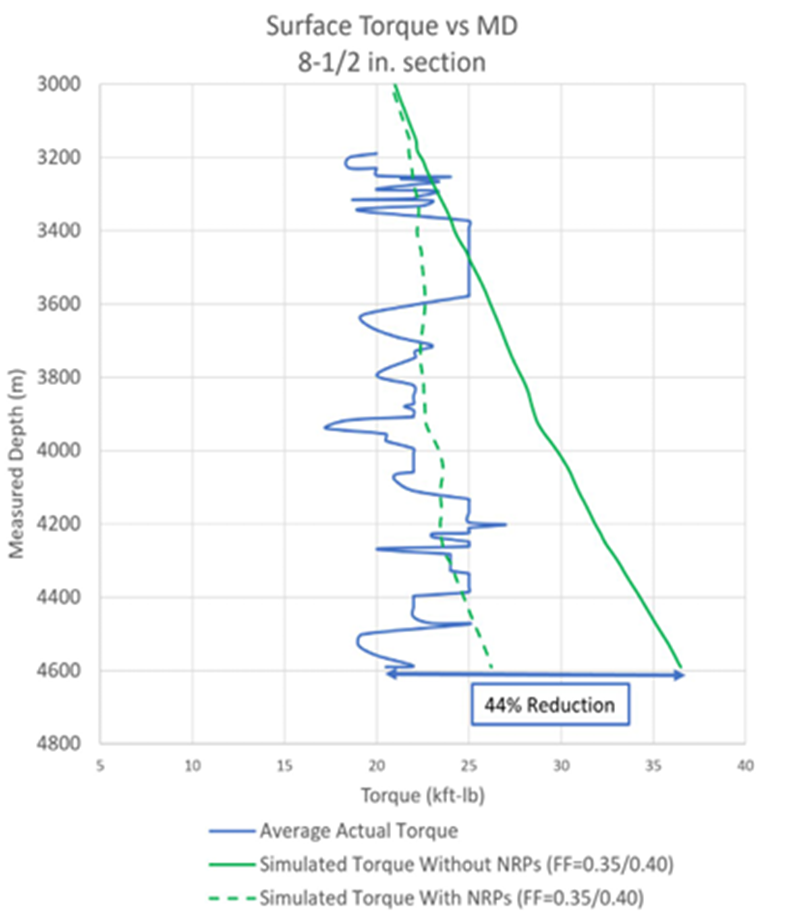

A directional well in Australia equipped with 156 SS3‑550 NRPs saw torque reduced by an extraordinary 44% compared to back‑model predictions, far exceeding expectations and highlighting the fluid‑bearing concept’s effectiveness in managing side forces and friction throughout build sections.
Latin America: Up to 70% Torque Reduction

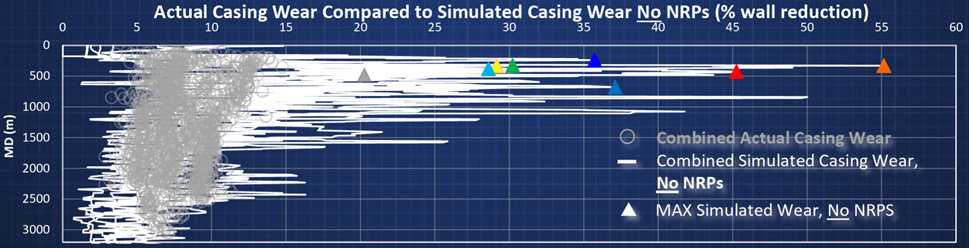

One especially telling case from Latin America showed how NRPs casing wear by up to 70% in a challenging S‑shaped well. This level of performance is only achievable when frictional drag and mechanical interference are addressed holistically.
Drag Reduction Performance: More Than Just Torque

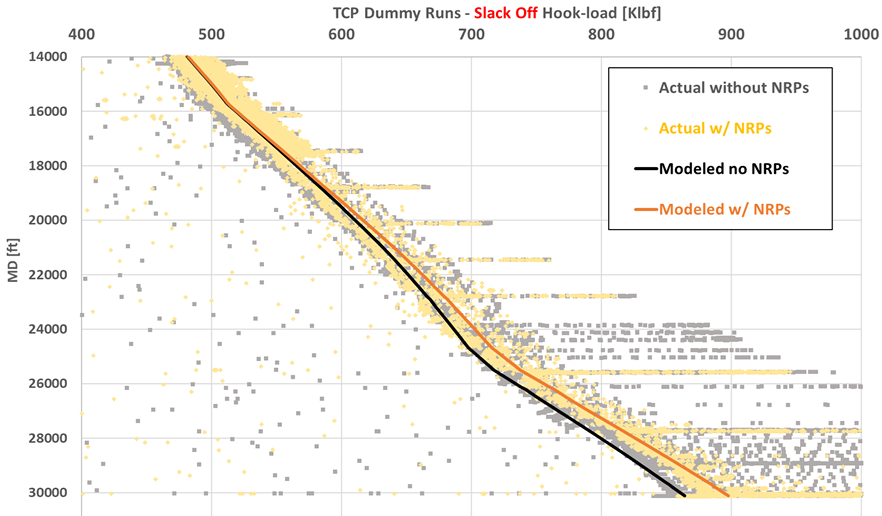

While torque reduction gets much of the attention, NRPs also deliver significant drag reduction benefits. In deepwater Gulf of Mexico completions, NRPs helped smooth pipe tripping through buckled casing, enabling controlled operations in setting down weight-even in high-friction completion fluids.
Reducing drag is critical not just for drilling efficiency but also for minimizing wear and tear on tools and facilitating safer, more predictable rig operations.
Why This Matters
Excessive torque and drag aren’t just challenges, they directly impact drilling costs, rig time, equipment integrity, and reservoir access. By employing a friction reduction system that uses fluid‑bearing principles and rugged mechanical design, operators can:
- · Improve energy and weight transfer to the bit
- · Lower mechanical specific energy (MSE)
- · Reduce casing, riser, and drill string wear
- · Mitigate stuck pipe risks and torsional limits
- · Enhance overall drilling performance in challenging environments
Conclusion
From deepwater directional wells to extended‑reach laterals and complex deviations, WWT Non‑Rotating Protectors have proven themselves in real drilling operations around the world. Through significant torque and drag reduction, often exceeding any other solutions available, NRPs enable more efficient drilling, better energy use, and stronger protection for downhole assets. For operators looking to push wells to their limits while maintaining performance and reliability, NRPs are a field‑tested and engineering‑optimized answer that continues to deliver measurable value.
